Patent Process of Energy Saving

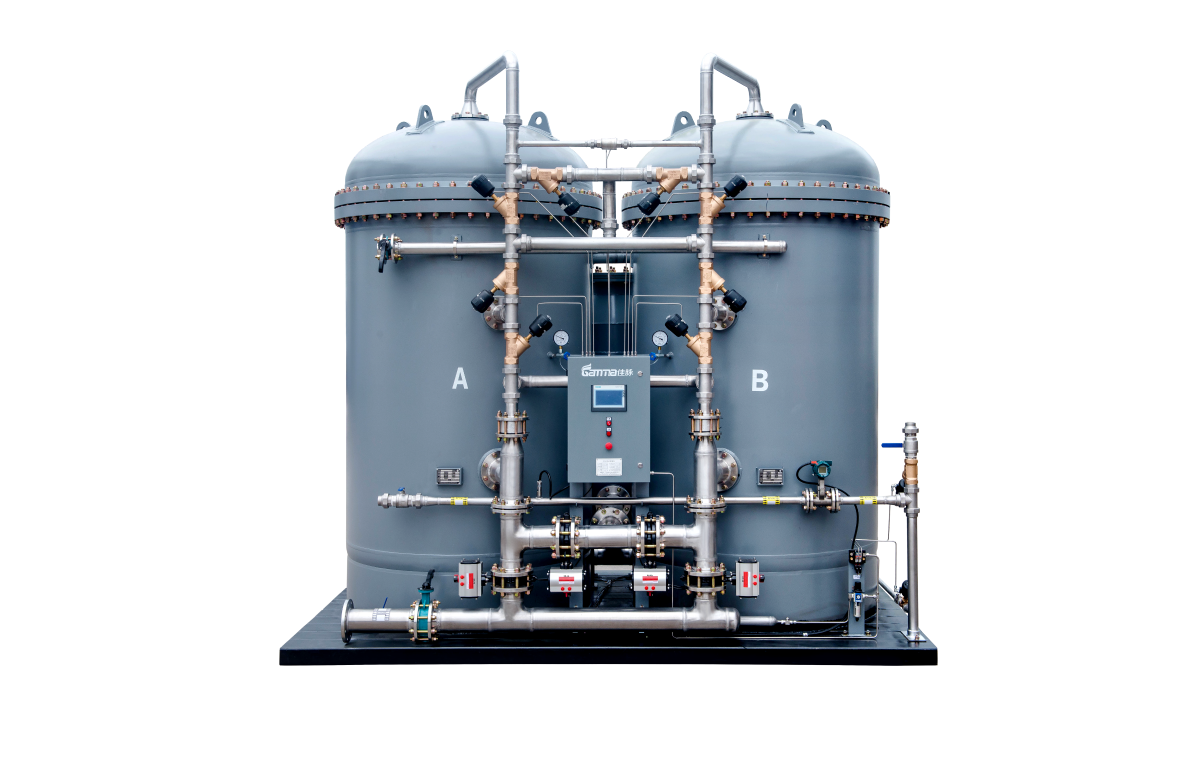

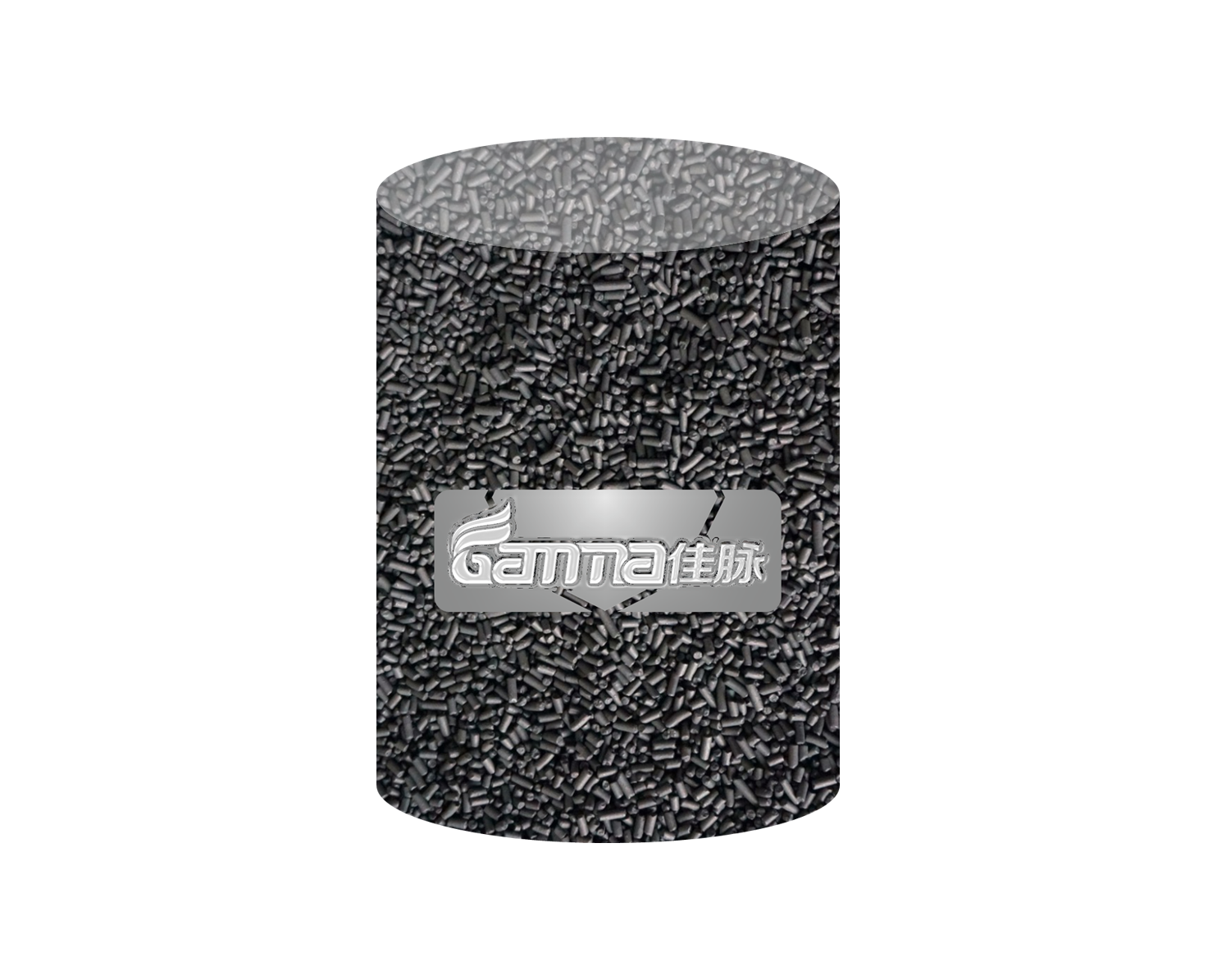

The newly developed C series nitrogen generator adopts the invention patent variable path stepwise pressure equalization technology (CN202211388349). This technology and Gamma Gas's own brand of long-cycle molecular sieve (CMS) perfectly combine, making the C series nitrogen generator have a super energy-saving air-nitrogen ratio (compressed air consumption).
Taking Gamma Gas C+49-200 model (purity 99.99%, flow rate 200Nm3/h) as an example, compared with other advanced competitive products in the market, Gamma Gas nitrogen generator can save 2.1 million kwh/year of electricity (running time 8000h/year).
In the operation process of PSA generator, adsorption towers separate gases by the cycle of adsorption - desorption - adsorption. In one cycle, the adsorption tower has one pressurized adsorption and one pressure reduction regeneration (emptying) process. During emptying process, while completing the CMS regeneration, energy is also emptied and wasted, and the pressurization process will cause impact on the molecular sieve bed layer. Therefore, emptying cycle, not only means the loss of energy consumption, but also directly affects the life of the molecular sieve CMS and the process control valve. Based on 8000 hours/year operation, the conventional working cycle of PSA generator has switching action times 2.6 million times/year.
15-Years-Life Adsorber
Gamma Gas PSA nitrogen generators adsorption tower container design life is 15 years. At the same time, Gamma Gas's advanced air flow distribution, flow rate control, full-area elastic compensation, and blizzard filling and other technical configuration, ensure the molecular sieve 15 years life time without powdering.
Advanced Manufacturing
he new C series nitrogen generators has neat and rigorous structure design, excellent material selection, advanced manufacturing based on process and equipment standardization, and digital quality control system. All these ensure that the advanced process can be reliably executed, thus fully releasing Gamma Gas's advanced technology potential, and providing customers with good reliability, stability machines.
Top Brand Parts & Functional Materials
The process gas control pipeline, and the main pipeline of the equipment, are all made of stainless steel material. Robot automatic welding process makes the design industrial aesthetic, spray-free pipe also makes the manufacturing more environmentally friendly! World-class valves, combined with the patented air separation process ensure the C series machines achieve excellent performance!
Easy Installation & Operation with IOT
Integrated with N2 flow meter, analyzer, dew point, temperature, pressure and other sensors, and built-in Internet of Things communication V-Box, users do not need secondary wiring, can achieve local or remote monitoring and operation. If the user needs to assess the energy consumption index of the generator (compressed air consumption), only need to install a flow meter at the PSA inlet, the machine can directly display, measure the nitrogen generator's energy consumption index, air-nitrogen ratio, convenient for energy consumption management and optimization.
